REPLACMENT PARTS

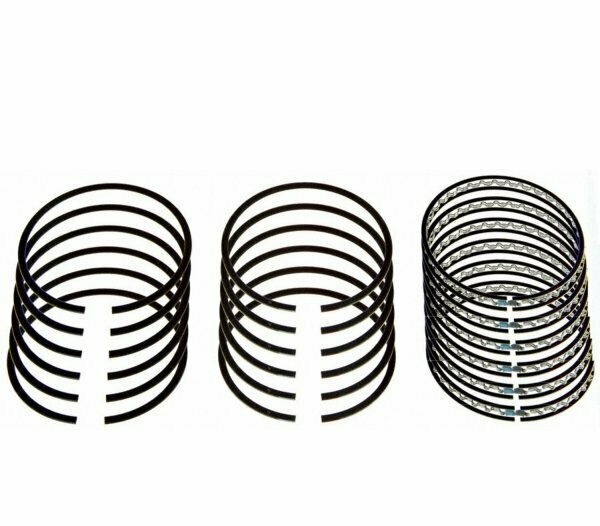

ENGINETECH PISTON RING SET

$49.99
Available Sizes
Please choose
In stock
Product Details

ENGINETECH

Chrome or Ductile Moly Top; Premium Set

Chrome or Ductile Moly top. 1.5 / 1.5 / 3.0mm.

Chrome or Ductile Moly Top; Premium Set
  • Enginetech rings are produced in OE manufacturing facilities.
  • Only the best materials are used for Enginetech rings. Our compression rings are made from the highest quality gray iron, ductile iron and high strength steel.
  • Barrel face, taper face, positive twist, reverse twist and Napier face designs among others are used where required.
  • Numerous ring face coatings are available depending on the application. Enginetech face coatings include plasma moly, chrome, gas nitrided & PVD.
  • Enginetech oil ring assemblies include designs such as SS-50, PC-98, Wire Latch & Flex Vent. Our oil ring expanders are designed for ease of installation to help prevent overlap during assembly.


Bore Diameter 86.00
Number of Cylinders 6
Oil Ring Thickness 3.00 MM
Oil Width (mm) 3
Ring Outside Diameter 3.386
Second Compression Ring Thickness 1.50 MM
Top Compression Ring Thickness 1.50 MM
Width 2 (mm) 1.5
Width Top (mm) 1.5
